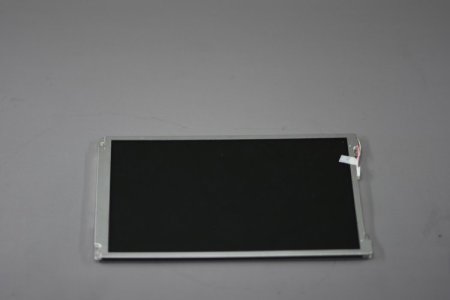

Panel brand: AUO
Panel model: G104SN03 V.1
Panel type: a-Si TFT-LCD
Panel size: 10.4"(inches)
Resolution:800*600
Display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel Brightness: 230 cd/㎡(Typ.)
Contrast: 500:1 (Typ.)
Display Color: 262K/16.2M (6-bit / 6-bit + FRC)
Response Time: 10/20 (Typ.)(Tr/Td) (ms)
Visual Angle: 70/70/55/65 (Typ.)(CR≥10) (L/R/U/D)
Scanning Frequency:60Hz
Lamp Type: 1pc CCFL
Signal Connector: LVDS (1 ch, 6/8-bit)
Connector: 20pins
Panel voltage: 3.3V (Typ.)
Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc
