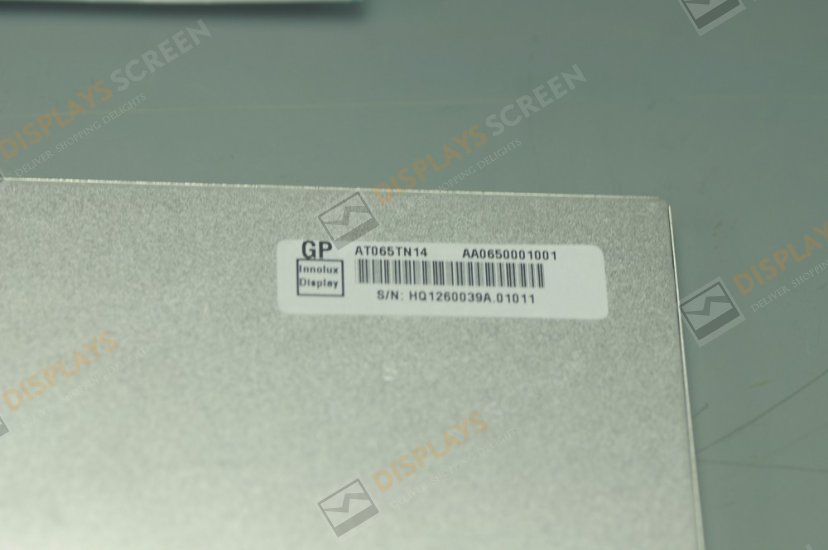

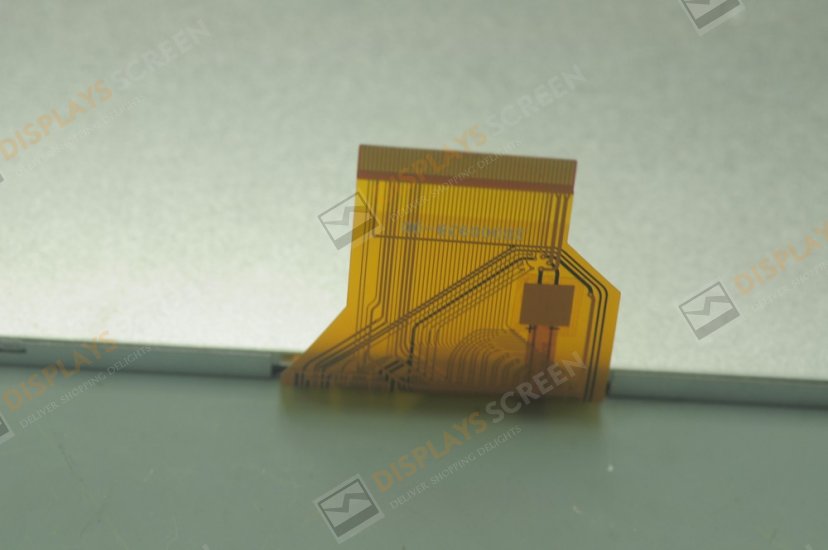

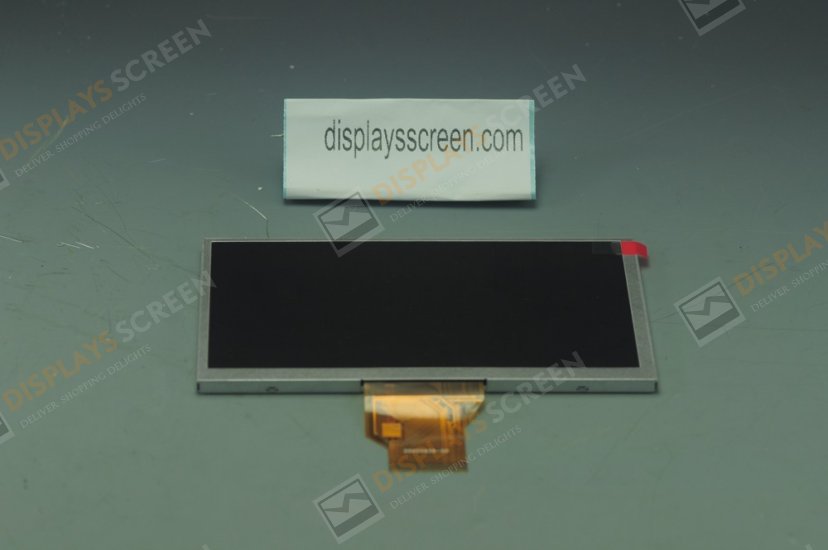

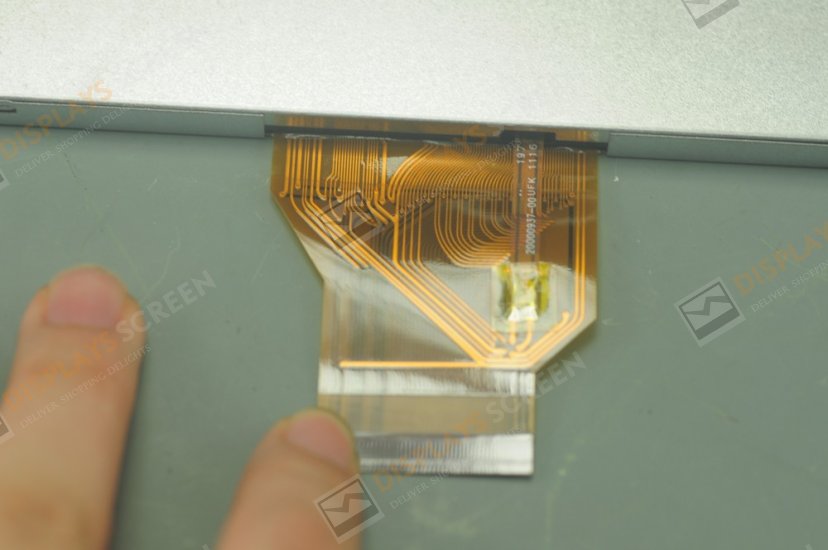

6.5 inch AT065TN14 LCD Panel 800*480 LCD Display Screen

$69.99
LCD-INN-300110-ZKL-038

Quantity Discount
5 +
$66.49
10 +
$65.09
15 +
$63.69
20 +
$62.99
30 +
$61.59
*The discount will be reflected in the payment.
  • Shipping Weight: 0.5kg
  • Units in Stock : 998
  • Manufactured by: Innolux
  • This product was added to our catalog on Thursday 10 January, 2013.
Description

Panel brand: INNOLUX
Panel model: AT065TN14
Panel type: a-Si TFT-LCD, LCD screen
Panel size: 6.5" (inch)
Resolution: 800*480
The display mode: TN, Normally White, Transmissive
Surface treatment: Matte, hard-core coating (3H)
Panel brightness: 400 cd/㎡(Typ.)
Contrast:500:1 (Typ.)
Display color: 262K/16.7M (6-bit / 6-bit + Dithering)
Response Time: 10/15(Typ.) (Tr/Td)(ms)
Visual Angle: 70/70/50/70(Typ.) (CR ≧ 10) (L/R/U/D)
Lamp Type: 3S8P WLED
Singal Connector: Parallel RGB (1 ch, 8-bit)
Panel Voltage: 3.3/10.4/15/-10V (Typ.)(VCC/AVDD/VGH/VGL)
