Panel brand: INNOLUX

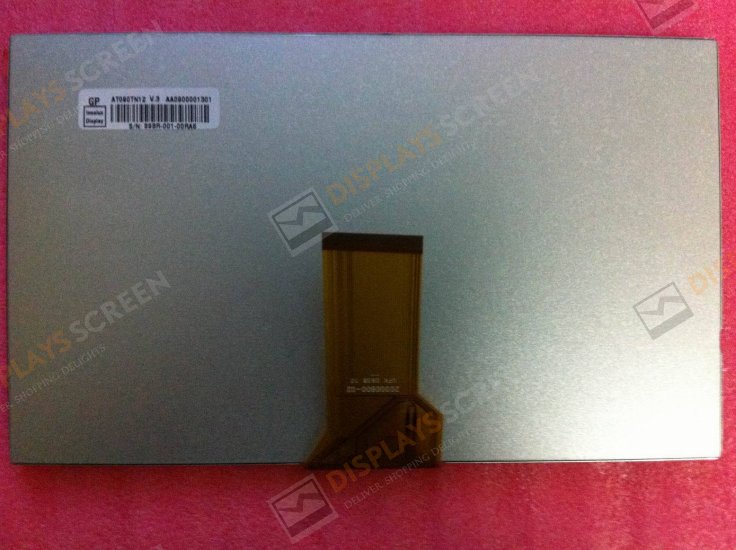

Panel model: AT090TN12 V.3
Panel type: a-Si TFT-LCD, LCD screen
Panel size: 9" (inch)
Width Height Rate: 16:9
Resolution:800*480
The display mode: TN, Normally White, Transmission-type
Surface treatment: Matte, hard-core coating (3H)
Panel brightness: 250 cd/㎡(Typ.)
Contrast: 500:1 (Typ.)
Display color: 262K/16.2M (6-bit / 6-bit + Dithering)
Response Time: 10/15(Typ.) (Tr/Td)(ms)
Visual Angle: 70/70/50/70(Typ.) (CR ≧ 10) (L/R/U/D)
Lamp Type: 3S11P WLED
Singal Connector: TTL (1 ch, 6/8- bit)
Panel Voltage: 3.3/10.4/17.0/-5.0V (Typ.)(DVDD/AVDD/VGH/VGL)

Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
