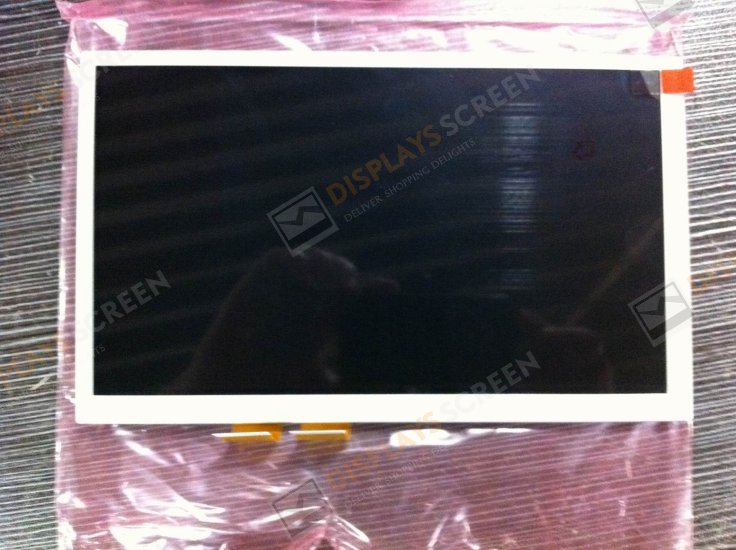

Panel brand: INNOLUX
Panel model: AT080TN03 V.1
Panel type: a-Si TFT-LCD, LCD screen
Panel size: 8.0" (inch)
Width Height Rate: 16:9
Resolution:800*480
The display mode: TN, Normally White, Transmission-type
Surface treatment: Matte, hard-core coating (3H)
Panel brightness: 250 cd/㎡(Typ.)
Contrast: 300:1 (Typ.)
Display color: 262K (6-bit)
Response Time: 15/20(Typ.) (Tr/Td)(ms)
Visual Angle: 65/65/45/65(Typ.) (CR ≧ 10) (L/R/U/D)
Lamp Type: 3S6P WLED
Singal Connector: Parallel RGB ( 1ch, 6-bit)
Panel Voltage: 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL)
Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military,Train LCD Media player, Portable DVD, Car Mobile media etc.
