Panel brand: INNOLUX

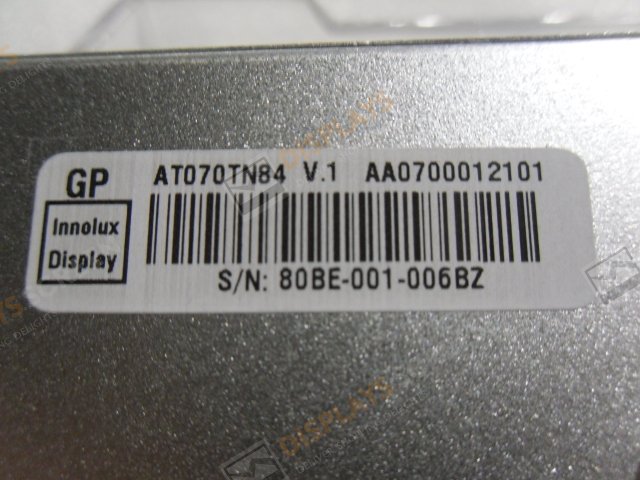

Panel model: AT070TN84 V.1
Panel type: a-Si TFT-LCD
Panel size:7.0"(inches)
Width Height Proportion: 16:9
Display Area: 152.40x91.44mm
Visual Area: 155.2x94.2mm
Outline Size:165.0x104.0mm
Resolution: 800*480
Display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel Brightness: 450 cd/㎡(Typ.)
Contrast: 500:1 (Typ.)
Display Color: 262K (6-bit)
Response Time: 10/15 (Typ.) (Tr/Td) (ms)
Visual Angle: 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Scanning Frequency:60Hz
Lamp Type: 3S9PWLED
Signal Connector: Parallel RGB (1 ch, 6-bit)
Connetior: double 30pins
Panel voltage: 3.3/10.4/16.0/-7.0V(Typ.)(VCC/AVDD/VGH/VGL)
Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
