Panel brand: Samsung

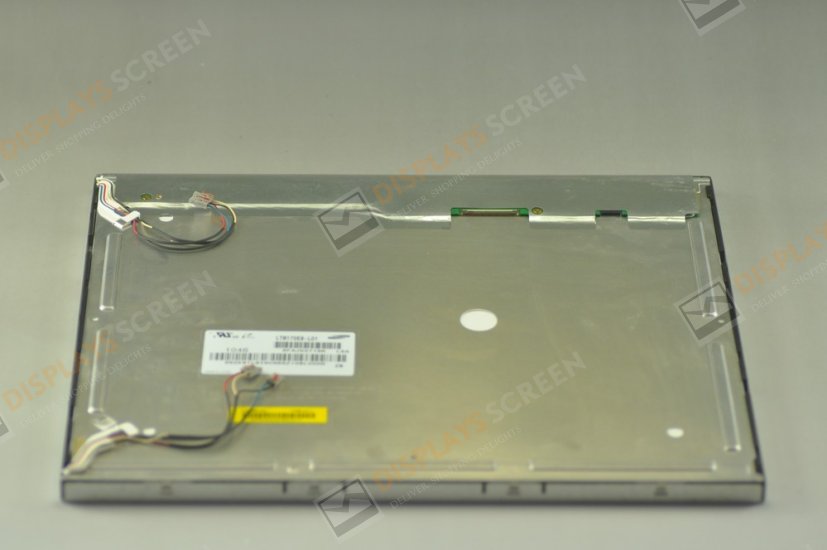

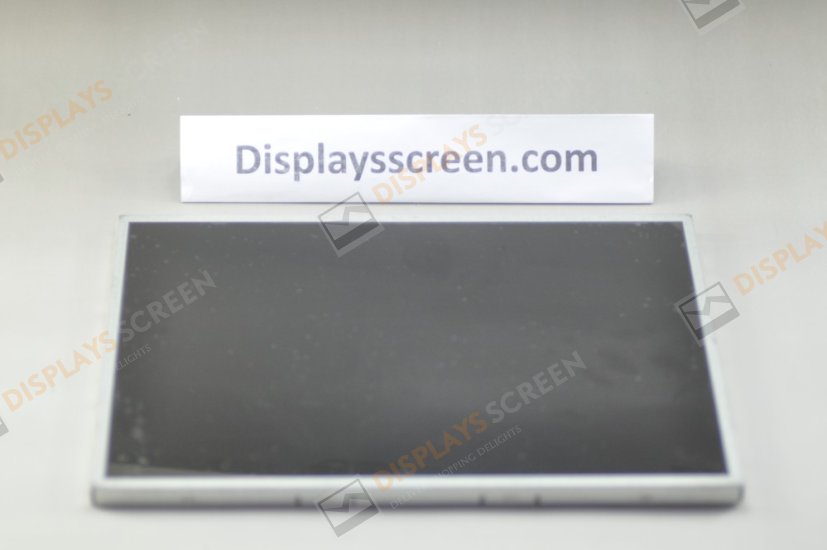

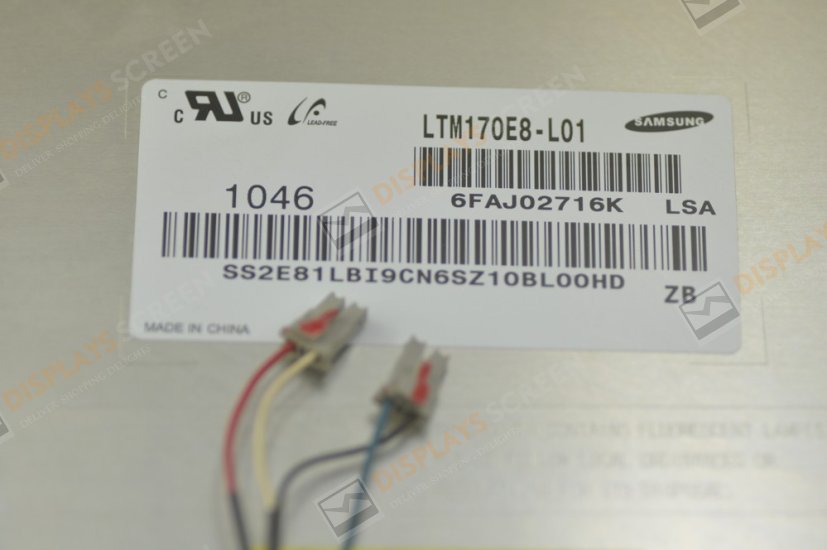

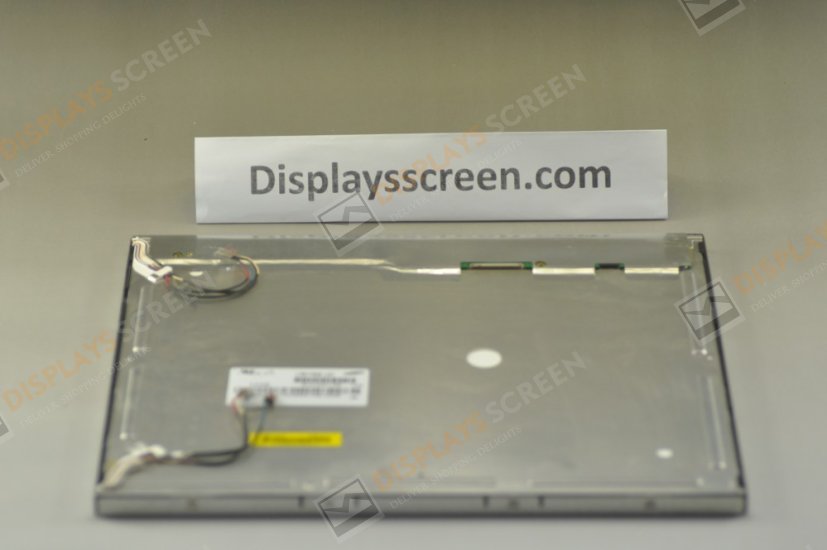

Panel model: LTM170E8-L01
Panel type: a-Si TFT-LCD, LCD screen
Panel size: 17.0" (inch)
Display Area: 337.9mm x 270.3mm
Width Height Rate: 4:3
Resolution:1280*1024
The display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel brightness: 300 cd/㎡(Typ.)
Contrast: 1500:1 (Typ.)
Display color: 16.7M (6-bit + Hi-FRC)
Response Time: 25(Typ.) (Tr/Td)(ms)
Visual Angle: 90/90/90/90(Typ.) (CR ≧ 10) (L/R/U/D)
Lamp Type: 2pcs CCFL
Singal Type: LVDS (2 ch, 8bit)
Panel voltage: 5.0V (Typ.)
Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
