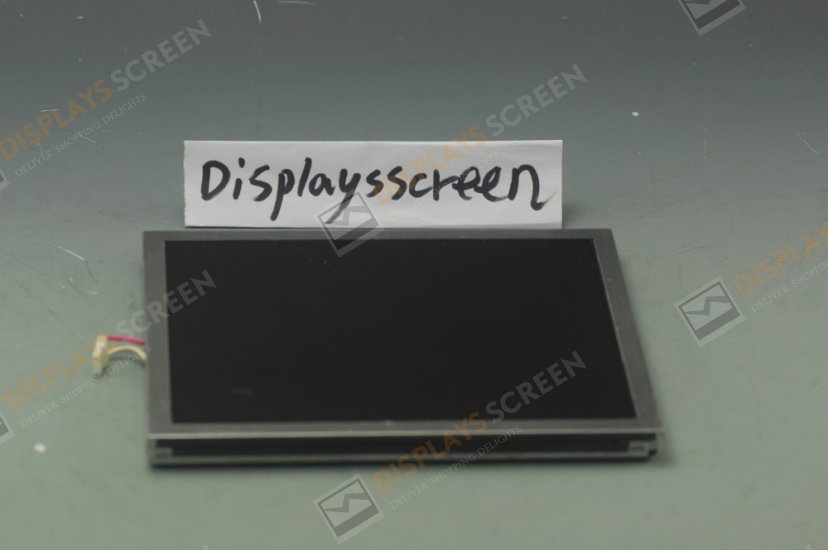

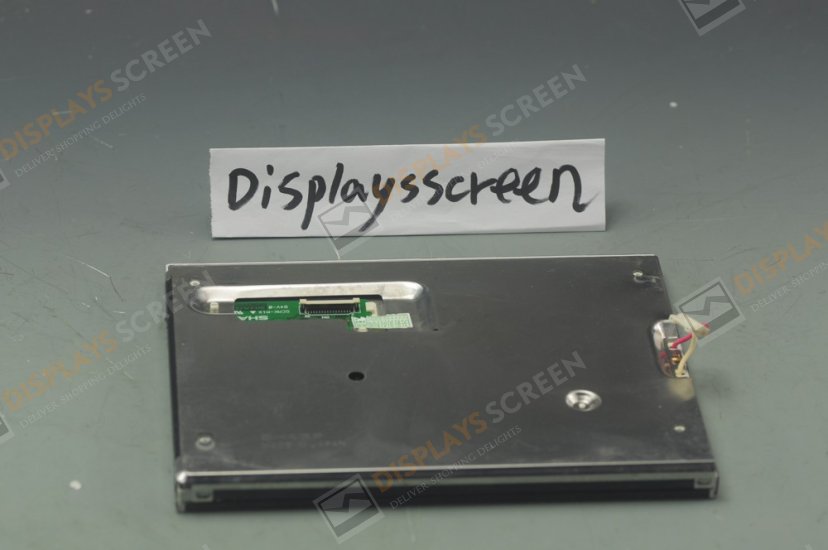

Panel brand: Sharp
Panel model: LQ080V3DG01
Panel type: a-Si TFT-LCD
Panel size:8.0"
Width Length Proportion: 4:3
Active Area: 162.2 x 121.7mm
Outline dimension: 183.0 x141.0 x14.0
Resolution: 640*480
Display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel Brightness: 380cd/㎡(Typ.)
Contrast: 250:1 (Typ.)
Display Color: 262K/16.2M (6-bit / 6-bit + FRC)
Response Time: 30/50 (Typ.)(Tr/Td)
Visual Angle: 65/65/65/55 (Typ.)(CR≥10) (L/R/U/D)
Scanning Frequency:60Hz
Lamp Type: 1pc CCFL
Signal Type: Parallel RGB (1ch, 6-bit)
Panel voltage: 3.3/5.0V (Typ.)(VDD)
Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
