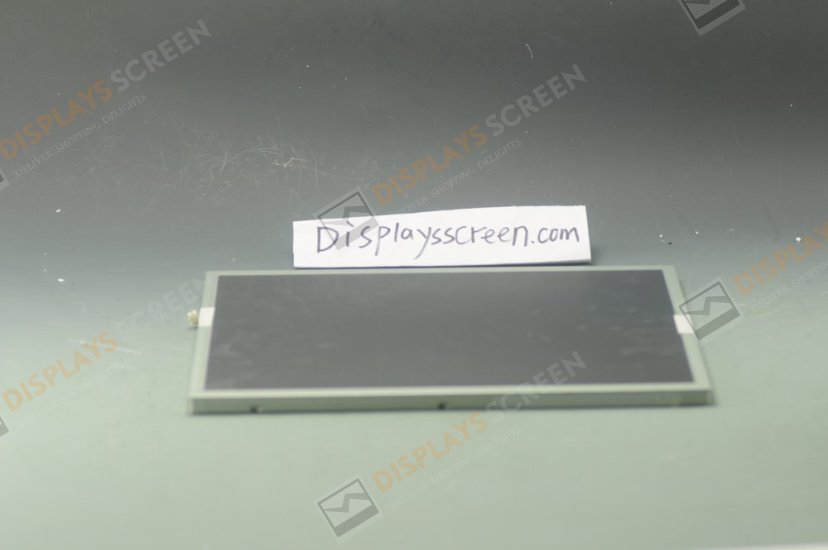

Panel brand: Sharp
Panel model: LQ150X1LGN2A
Panel type: a-Si TFT-LCD, LCD screen
Panel size: 15.0"(inches)
Display Area: 304.1mm(H)x228.1mm(V)
Visual Area: 308.1mm(H)x232.1mm(V)
Resolution: 1024*768
The display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel brightness: 260 CD/㎡(Typ.)
Contrast: 350:1 (Typ.)
Display color: 16.2M (6-bit+ FRC)
Response Time:5/20 (Typ.) (Tr/Td) (ms)
Visual Angle: 60/60/45/55 (Typ.) (CR p 10) (L/R/U/D)
Connector: LVDS(1 ch, 8bit)
Panel voltage: 3.3 V (Typ.)

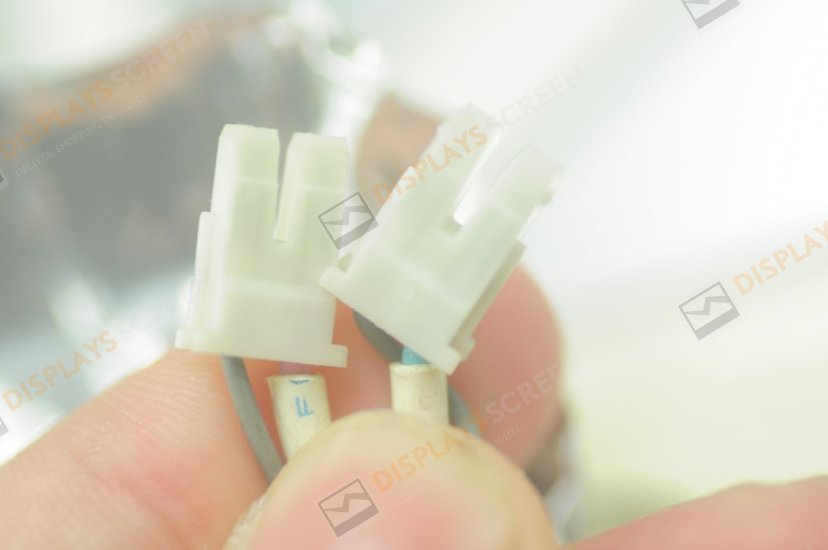

Backlight: LED
Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
