Panel brand:Sharp

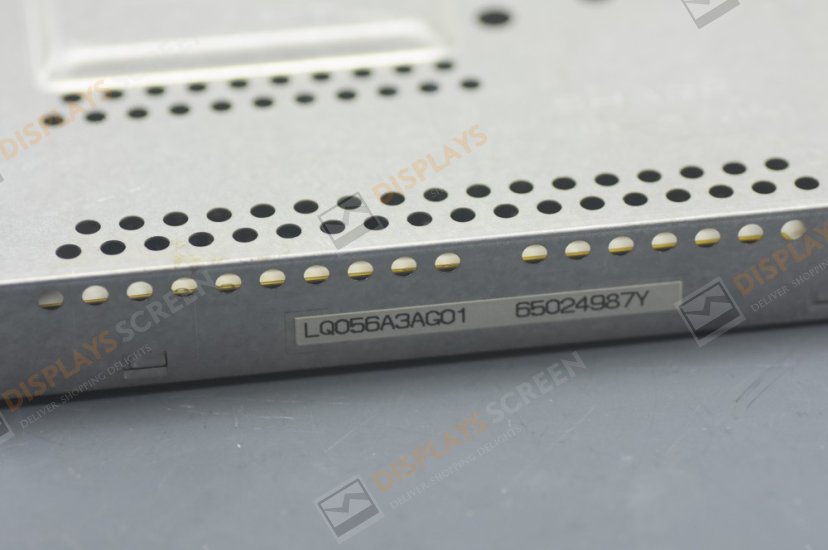

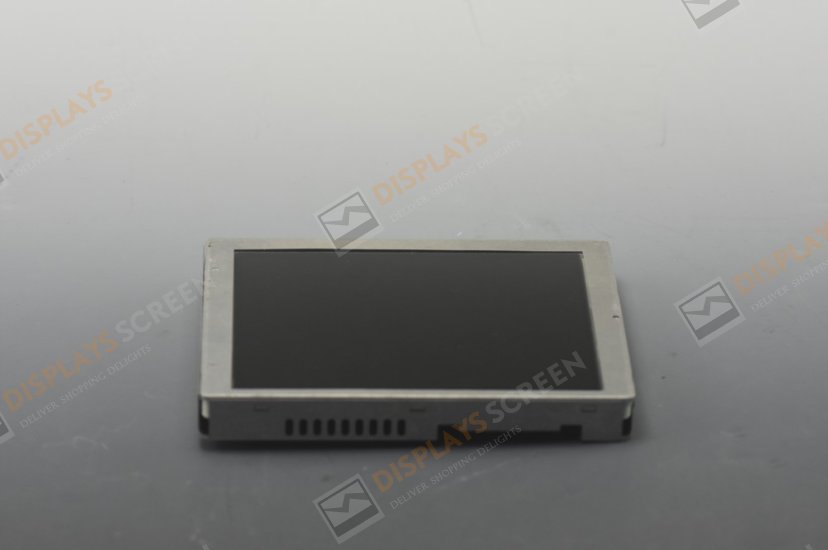

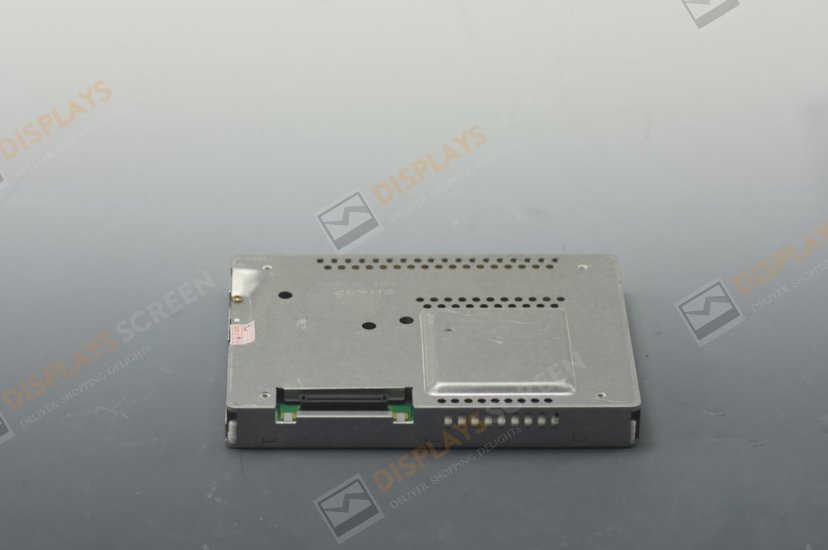

Panel model: LQ056A3AG01
Panel type: a-Si TFT-LCD, LCD screen
Panel size: 5.6" (inch)
Width Height Rate: 4:3
Resolution:320*234
The display mode: TN, Normally White, Transmission-type
Surface treatment: Matte, hard-core coating (3H)
Panel brightness: 250 cd/㎡(Typ.)
Contrast: 60:1 (Typ.)
Display color: Panchromatic
Response Time: 15/20(Typ.) (Tr/Td)(ms)
Visual Angle: 65/65/40/65(Typ.) (CR ≧ 10) (L/R/U/D)
Lamp Type: 1pc CCFL

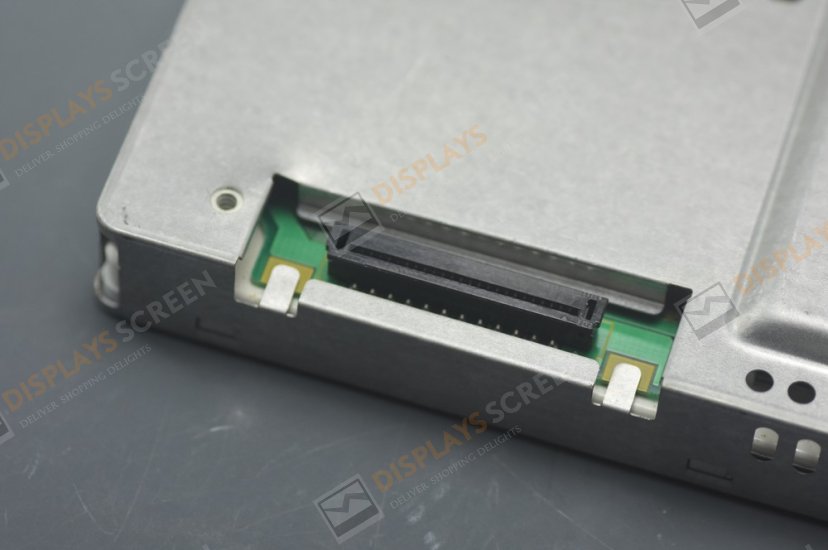

Singal Connector Type: Analog RGB + Composite Video (NTSC/PAL)
Panel Voltage: 12.0 (Typ.)
Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
