Panel brand: Sharp

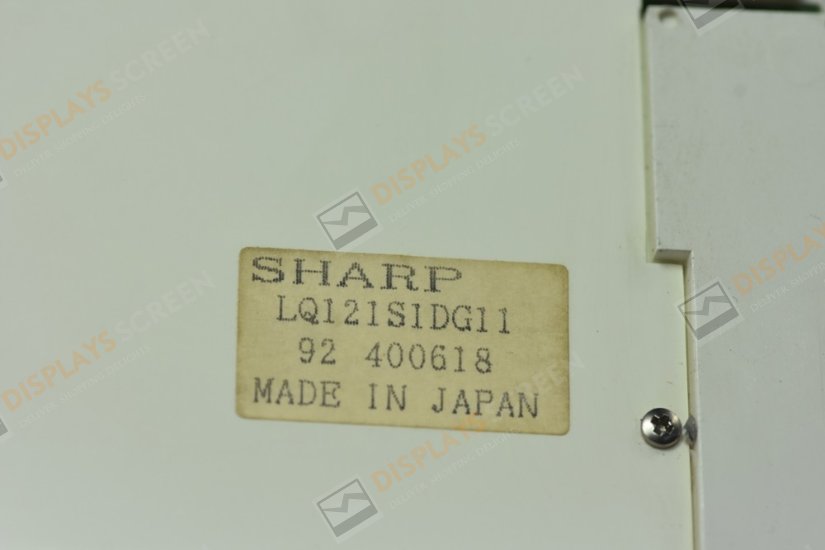

Panel model: LQ121S1DG11
Panel type: a-Si TFT-LCD, LCD screen
Panel size: 15.0"(inches)
Width Height Rate: 4:3
Display Area: 246.0mm(H)x184.5mm(V)
Visual Area: 249.0mm(H)x225.0mm(V)
Resolution:800*600
The display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel brightness: 250 CD/㎡(Typ.)
Contrast: 300:1 (Typ.)
Display color: 262K (6-bit)
Response Time: 15/30 (Typ.) (Tr/Td) (ms)
Visual Angle: 60/60/45/55 (Typ.) (CR ≧ 10) (L/R/U/D)

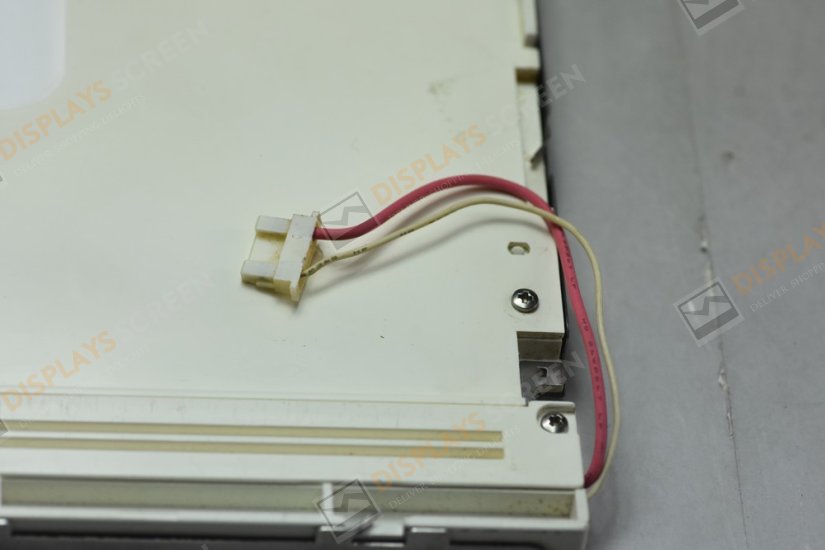

Lamp Type: 2pcs CCFL

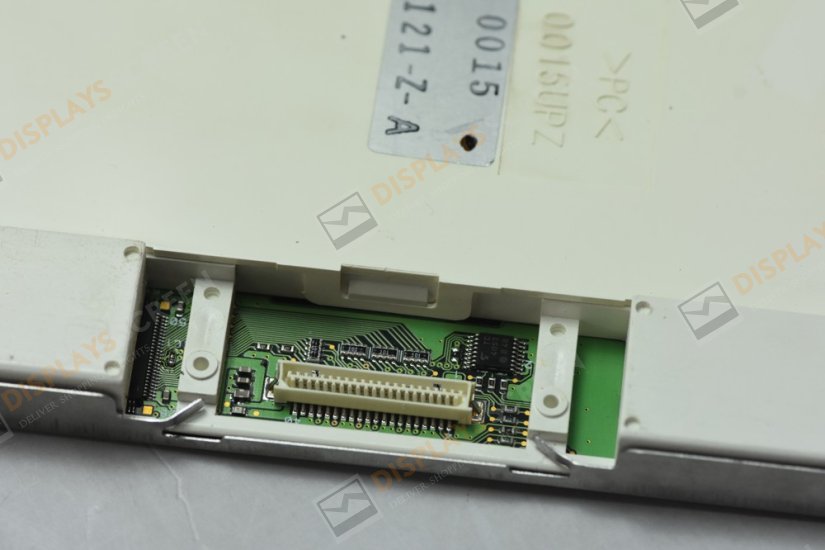

Connector: Parallel RGB(1 ch, 6bit)
Panel voltage: 3.3/5.0V (Typ.)
Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
